The Digital AV port on early Nintendo GameCube consoles was designed for higher-quality video output.
It allows you to use Nintendo's official component video cable or modern HDMI adapters, giving you a much sharper picture than the standard composite connection.
You'll find it on DOL-001 GameCube models, but Nintendo removed it from the later DOL-101 revision.
For most people using a modern TV, a DOL-001 with a compatible HDMI adapter is the best way to get a great picture from an original GameCube.
What is the Digital AV port?

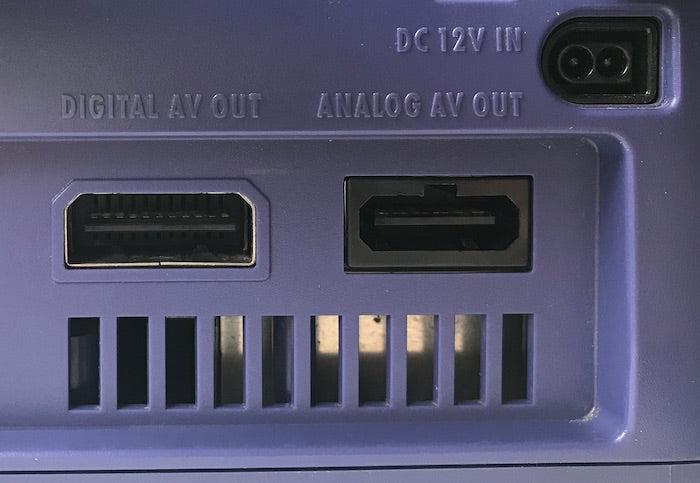

If you look at the back of an early GameCube, you'll find two video connections:
- Analog AV Out: The standard connection used for composite video and, on European consoles, RGB SCART.
- Digital AV Out: A separate connection designed for higher-quality video output.
The Digital AV port carries a digital video signal that can be converted into component video or HDMI using compatible accessories.
When the GameCube launched in 2001, Nintendo offered an official component cable that connected to this port.
Unlike a standard composite cable, component video separates the picture into three signals, producing a cleaner image with sharper detail and less colour interference.
The Digital AV port is particularly useful today because modern adapters can convert its signal directly to HDMI.
Which GameCube models have a Digital AV port?
Nintendo released two main hardware revisions of the GameCube.
| Model | Digital AV port | Analog AV port |
|---|---|---|
| DOL-001 | Yes | Yes |
| DOL-101 | No | Yes |
The DOL-001 was the original model, released in 2001 in Japan and 2002 in Europe.
The later DOL-101 revision removed the Digital AV port as part of Nintendo's efforts to reduce manufacturing costs.
Both models play the same GameCube games, so the difference is mainly about video connectivity.
If you're buying a GameCube today, we'd recommend checking the model number on the underside.
A DOL-001 gives you more options for getting a high-quality picture.
What was the official GameCube component cable?
Nintendo originally sold a component video cable that connected to the Digital AV port.
It provided three video connections, coloured red, green and blue, for use with compatible TVs.
The cable contained a special digital-to-analogue converter chip, which is one reason original Nintendo component cables are now so expensive.
These cables have become desirable among collectors, but you don't need an original Nintendo cable to get a good picture today.
Modern alternatives can provide similar functionality at a much lower price.
It's also worth mentioning that the official component cable only carries video. Audio still comes from the GameCube's separate Analog AV port.
Can the GameCube output 480p?
Yes, but there's an important catch for UK players.
The GameCube supports 480p progressive scan through its Digital AV port, giving you a sharper picture than the standard 480i output.
However, 480p support was mainly available in NTSC games released in North America and Japan.
Most PAL GameCube games released in Europe don't offer a native 480p mode. Instead, many offer a 60Hz mode.
That means buying a DOL-001 and an HDMI adapter won't automatically make your PAL games run at 480p.
You can use homebrew software such as Swiss to force progressive scan in compatible games, although results vary.
Even without 480p, the Digital AV port can still provide excellent picture quality.
Can you connect the Digital AV port to HDMI?
Yes!
This is probably the most useful feature of the port today.
Modern HDMI adapters based on GCVideo connect directly to the GameCube's Digital AV port and convert its video output to HDMI.
Popular examples include:
- Carby by Insurrection Industries
- Prism HD by Retro-Bit
- GCHD Mk-II by EON
These adapters allow you to connect a DOL-001 GameCube to a modern TV without modifying the console.
They also avoid the poor picture quality you can get from cheap composite-to-HDMI converters.
Some offer additional features such as scanlines, line doubling and video settings.
For somebody who wants to play original GameCube games on a modern TV, they're a great option.
Is Digital AV better than RGB SCART?
This depends on how you're using your GameCube.
European PAL GameCubes support RGB SCART through their Analog AV port, which already provides an excellent picture on a compatible CRT TV.
If you're playing on a CRT at standard resolutions, RGB SCART can look fantastic.
The Digital AV port becomes more useful when connecting to a modern TV or using progressive scan.
Here's a quick comparison:
| Connection | Picture quality | 480p support |
|---|---|---|
| Composite | Lowest | No |
| RGB SCART (PAL) | Excellent | No |
| Component via Digital AV | Excellent | Yes, with compatible games |
| HDMI via Digital AV | Excellent | Yes, with compatible games |
For a UK collector using a CRT, RGB SCART is already a brilliant option.
For a modern TV, we'd lean towards a Digital AV HDMI adapter.
Can you add a Digital AV port to a DOL-101?
Not easily.
The DOL-101 doesn't have the external Digital AV connector, so you can't simply plug in one of the adapters mentioned above.
There are internal hardware mods that can add digital HDMI output to later GameCube models, but these require opening the console and soldering components to the motherboard.
For most people, buying a DOL-001 is the simpler option.
The DOL-101 can still output composite video, and PAL models support RGB SCART, so it isn't a bad console.
You just have fewer video options without modifying it.
Is the DOL-001 worth buying over the DOL-101?
For us, yes.
Both consoles play exactly the same games, but the DOL-001 gives you access to the Digital AV port, which is one of the most useful features for connecting a GameCube to modern displays.
You can use original Nintendo component cables, modern HDMI adapters or RGB SCART on PAL consoles.
The DOL-101 is still perfectly capable if you're happy using RGB SCART or composite, but we'd choose the DOL-001 for its flexibility.
If you're buying a GameCube today, check the underside for DOL-001. It's the model we'd recommend.
