The PS2 Expansion Bay is a compartment on the back of the original Fat PlayStation 2, designed for installing accessories such as the Network Adapter and an internal hard drive.
It was originally used for online gaming and games that supported hard drive storage.
Today, it's particularly useful for installing a hard drive or SSD to run games using homebrew software.
You'll find the Expansion Bay on 3XXXX and 5XXXX Fat PS2 models, but not on the later Slimline consoles.
What is the PS2 Expansion Bay?
If you look at the back of an original Fat PlayStation 2, you'll notice a large rectangular compartment covered by a removable plastic panel.
That's the Expansion Bay.
Sony designed it to allow additional hardware to be installed inside the console, rather than having accessories permanently attached to the outside.
The compartment is large enough to accommodate a standard 3.5-inch hard drive, with a connection at the back for the official PS2 Network Adapter.
When the PS2 launched in 2000, online gaming and internal console storage were still relatively new ideas.
The Expansion Bay gave Sony a way to add these features without including them in every console.
Which PS2 models have an Expansion Bay?
The Expansion Bay is found on the original Fat PS2 models.
Here at RetroQuest, we group PS2 consoles into four main families:
| PS2 model | Expansion Bay |
|---|---|
| 3XXXX Fat | Yes |
| 5XXXX Fat | Yes |
| 7XXXX Slimline | No |
| 9XXXX Slimline | No |
Both Fat models support the official Network Adapter and internal hard drives.
When Sony redesigned the PS2 into the much smaller Slimline model in 2004, it removed the Expansion Bay entirely.
The Slimline consoles gained built-in Ethernet, so they no longer needed a separate Network Adapter for online gaming.
What is the PS2 Network Adapter?
The PS2 Network Adapter is an accessory that connects to the Expansion Bay on the back of a Fat PS2.
Its original purpose was to provide an Ethernet connection for online multiplayer games.
Some versions also included a telephone modem, although the European adapter used Ethernet alone.
Games such as SOCOM: U.S. Navy SEALs, Star Wars: Battlefront and Tony Hawk's Underground supported online multiplayer through the adapter.
The Network Adapter also includes the connections needed to install an internal hard drive.
This second feature has become one of its biggest selling points today.
Can you install a hard drive in the Expansion Bay?
Yes!
The Expansion Bay was designed to accommodate a standard 3.5-inch IDE/PATA hard drive.

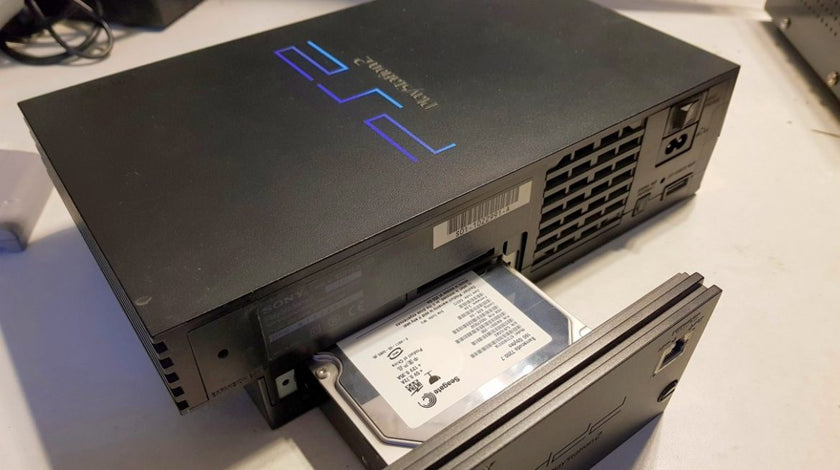

You install the drive by connecting it to the Network Adapter and sliding the assembly into the Expansion Bay.
Sony originally intended hard drives to be used with supported games and software.
One of the best-known examples is Final Fantasy XI, which required a hard drive to run on the PS2.
But hard drive support became much more useful thanks to the PS2 homebrew community.
Can you run PS2 games from an internal hard drive?
Yes, using homebrew software.
One of the most popular tools is Open PS2 Loader (OPL), which allows compatible PS2 games to run from storage devices rather than the original discs.
With a hard drive installed in the Expansion Bay, you can store and launch games directly from the console.
This offers several advantages:
- Less disc drive wear: Games don't need to be read from the ageing optical drive.
- Convenience: You can keep multiple games installed without swapping discs.
- Loading times: Some games load faster from a hard drive.
- Large storage capacity: Modern drives can hold a substantial PS2 game library.
Not every game works perfectly with OPL, but compatibility is excellent across much of the PS2 library.
It's one of the reasons Fat PS2 consoles remain so popular with enthusiasts.
Can you install an SSD in the Expansion Bay?
Yes, with the right adapter.
The original Sony Network Adapter uses an older IDE/PATA connection, so a modern SATA SSD won't connect directly.
However, you can install a SATA conversion kit inside the official Network Adapter.
This replaces the original hard drive connector and allows modern SATA hard drives and SSDs to be used.
There are also third-party Network Adapters with SATA connections built in.
An SSD won't make the PS2's processor any faster, and the console's interface limits transfer speeds.
But SSDs are quiet, have no moving parts and are easy to find.
For a modern PS2 homebrew setup, they're a great option.
Do you need a Network Adapter to use the Expansion Bay?
For installing a standard internal hard drive, yes.
The Expansion Bay itself is just the compartment. It doesn't contain the connectors needed to attach a hard drive.
Those are provided by the Network Adapter.
You can use an official Sony adapter or a compatible third-party alternative.
One thing to watch out for is that many third-party SATA adapters don't have working Ethernet ports.
If you want both internal storage and network connectivity, we'd recommend an original Sony Network Adapter with a SATA conversion kit.
Can the PS2 Slimline use a hard drive?
Not through an Expansion Bay.
The Slimline models don't have the compartment or standard internal hard drive connection found on Fat consoles.
However, you can still use homebrew software to load games from other storage devices.
For example, Open PS2 Loader supports loading games over a network, and some setups use USB storage.
The PS2's USB ports are only USB 1.1, so loading games from USB can be slow and cause problems with video playback.
For somebody who wants a large game library stored inside the console, a Fat PS2 with an Expansion Bay is the simpler option.
Is the PS2 Expansion Bay still useful today?
Absolutely.
Although Sony originally designed it for online gaming and hard drive support, the Expansion Bay has become one of the Fat PS2's most useful features.
It gives you the option to install modern storage, run games through homebrew and reduce reliance on an ageing optical drive.
If you're buying a PS2 specifically for this purpose, we'd recommend a 5XXXX Fat model.
It has quieter cooling than earlier Fat consoles, retains the Expansion Bay and supports the same Network Adapter accessories.
For us, the Expansion Bay is one of the biggest reasons to choose a Fat PS2 over a Slimline.
It's a feature that wasn't essential when the console launched, but has become much more valuable more than 25 years later.
